Track Mat

This track mat is not a play mat. It is a template that is to be glued to the baseboard as the foundation for 00 gauge track laying and scenery construction.

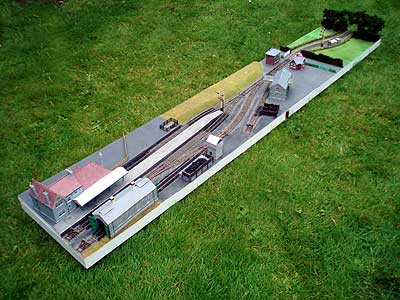

The mat comprises 16 x A4 tiles in full colour for a baseboard measuring exactly 2.376 m x 0.42 m plus fiddle yard for holding stock and making up train combinations to run in and out of the scenic layout. The station is a fictitious country branch line terminus located somewhere on the British Rail Southern network.

The layout is designed to accommodate card kit buildings available from the A Model Railway card kit shop. The mat shows locations for these, PECO track and other essential scenic items. The modeller is free to expand on this by adding station and line side furniture such as telegraph poles and lamps etc. The modeller must design, build and connect a fiddle yard.

Instructions in use of the mat is provided and includes a list of PECO track parts and supplementary scenic items.

The mat is a free option with 'Built to Order' models.

Printing Considerations

The graphic of each tile extends to the edge of the paper. If your printer does not print to the edge of the paper but leaves a plain border this is acceptable. Do not cut off the border. Use a print preview to check the graphic size against that in the .pdf file and scale using your printer settings, if necessary. The border will hide part of the graphic. Do not overlap the tiles. Butt them together when fixing to the baseboard.

If your printer produces a slightly reduced graphic size, because of borders, this may be acceptable if you take care to set the station platform width such that trains do not interfere with it.

Print the tiles in draft mode to save on printer ink.

model railway

Populated Layout & Building List


Track Mat Tiles

16 x A4 tiles for 2.376 m x 0.42 m baseboard. Issue 2 (January 2021): Includes locations for Coal Office & Coal Staithes and Coaling Stage & Inspection Pit card kits.

Delivered as multiple .pdf data files.

When your payment has cleared at PayPal you will be shown the assembly instructions to download. The kit .pdf file will be delivered separately to your PayPal registered email address within 24 hours of cleared payment.

Shipping ONLY to UK, Australia, New Zealand customers.

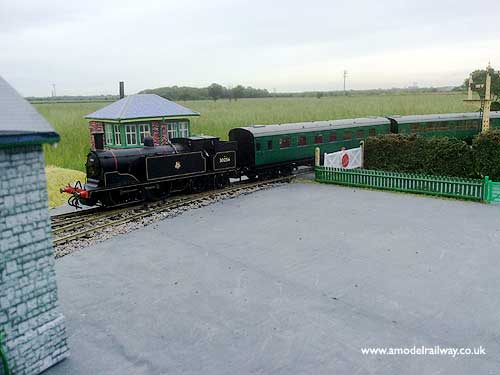

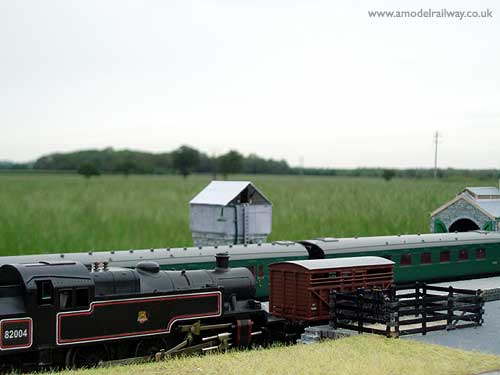

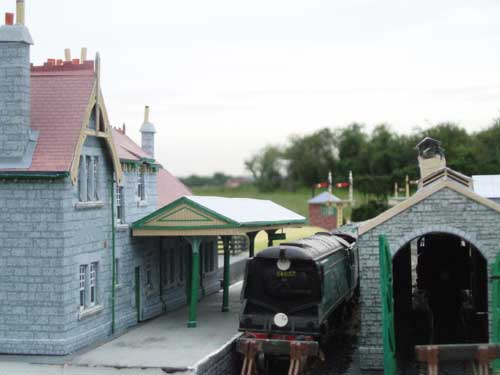

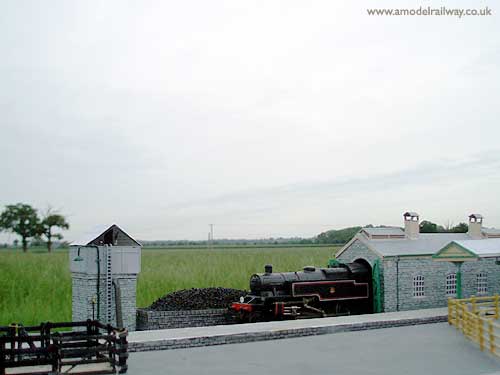

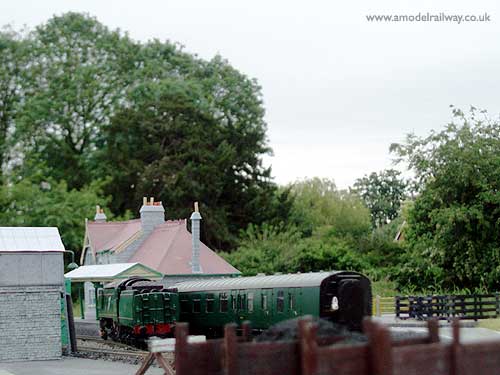

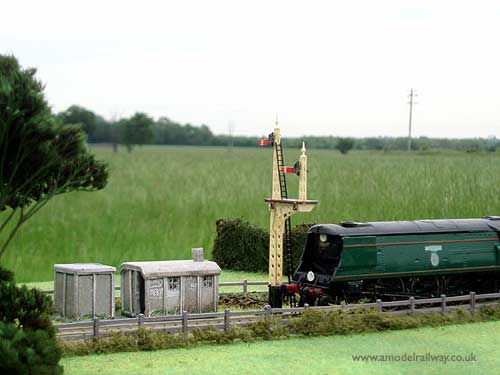

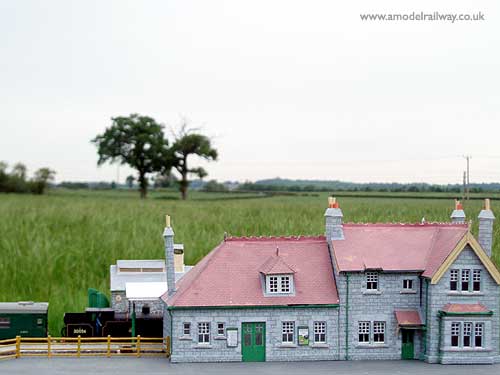

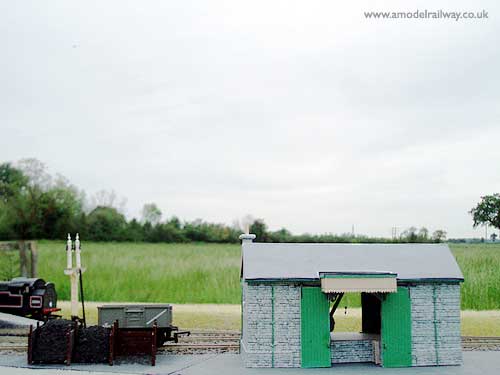

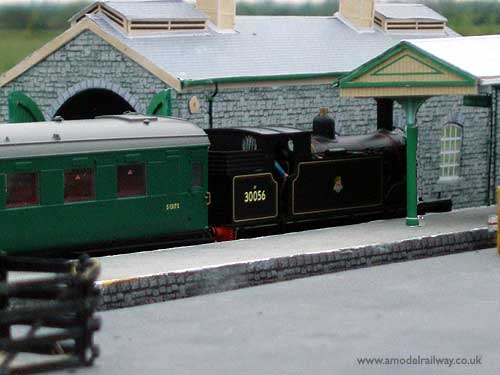

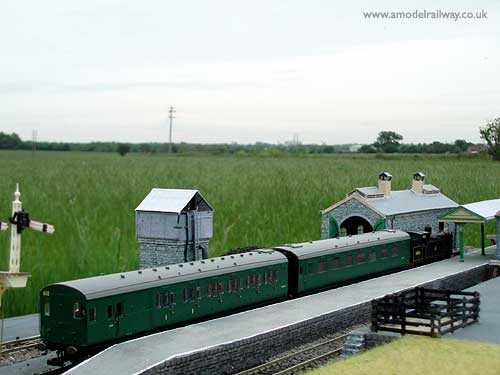

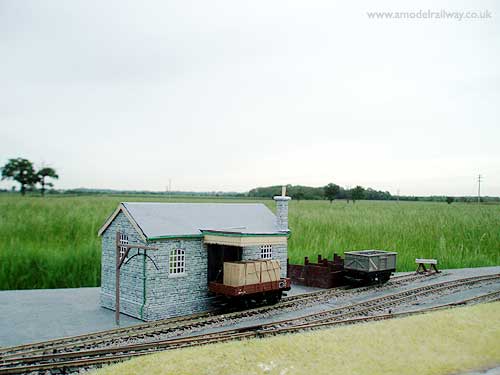

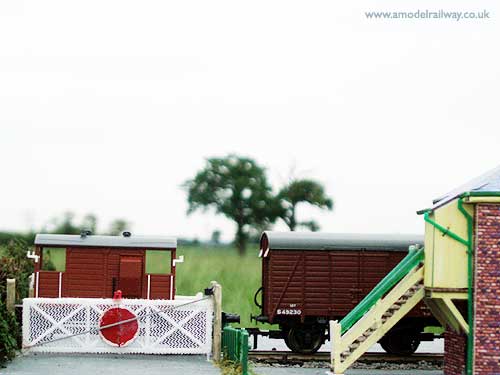

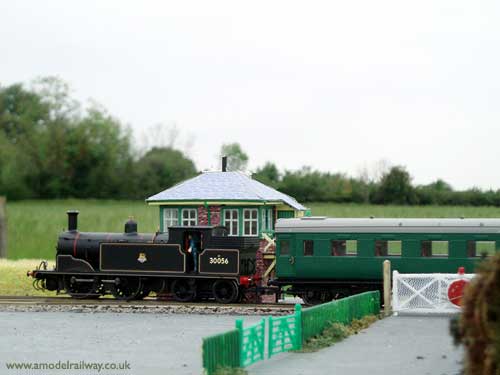

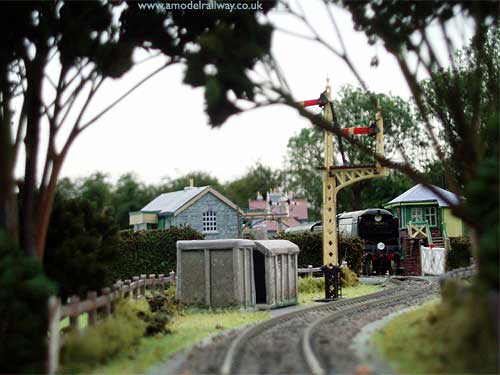

Photo shoot May 2019

Slide Show

Click image and then use the arrows to scroll 15 views photographed against a natural landscape (May not display on some mobile devices).

Slide show pre-dates provision for Coal Office, Staithes, Coaling Stage and Inspection Pit card kits.
