Coal & Timber Office & Staithes

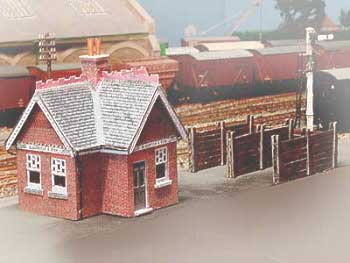

Based on B. Horton & Son Coal & Timber Office, Westerham Kent. Built of brick, tile and slate in 1903 and located near to the station goods yard. The building, with some modifications, survives to this day under new ownership. The model is close in style to the office as built.

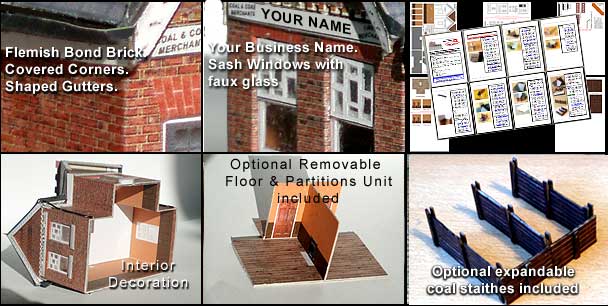

The kit includes optional interior floor & partitions and expandable 2 bay coal staithes (without coal).

Office Footprint: 85 mm x 64 mm
2 Bay Coal Staithes footprint: 75 mm x 75 mm

Build skill level: ADVANCED (See Welcome Page for definition) .
Rated ADVANCED because of intricate window frame cutting and gutter assembly.

Material kit also available (see below) .

!

coal office

026

Coal & Timber Office & Staithes .pdf Card Kit

Delivered as multiple .pdf data files.

When your payment has cleared at PayPal you will be shown the assembly instructions to download. The kit .pdf file will be delivered separately to your PayPal registered email address within 24 hours of cleared payment.

Shipping ONLY to UK, Canada, Australia, New Zealand customers.

Weight: kg

Coal & Timber Office & Staithes Materials Kit

Kit includes materials for up to 4 bay coal staithes.

DIY Print Kit Contents:

  • 3 x 750 micron (0.75 mm) A4 Grey Board
  • 4 x A4 Sticky Backed Paper for Ink Jet or Laser Printers
  • 1 x A4 Non-sticky Paper for Ink Jet or Laser Printers
  • 1 x 99 mm x 210 mm x 250 micron (0.25 mm) Transparent Plastic
  • 140 mm x 1.00 mm diameter wire

You still need to print the papers yourself and source adhesives.

Shipping ONLY to UK Customers.

Fully Printed Kit Contents:

  • Materials as above
  • Printed using Epson Durabrite® Ultra Ink for colour fade resistance, smudge and water resistance. See full specification here

You still need to fix paper to board, cut out the parts and source adhesives yourself.

Note: .pdf Card Kit is NOT required for this option.

See Postage Rates.

Customer Comment about Coal Office & Staithes .pdf card kit

Vendor's Note: Whilst we cannot guarantee suitability of our 4 mm scale kits for other scales the more adventurous might like to try rescaling.

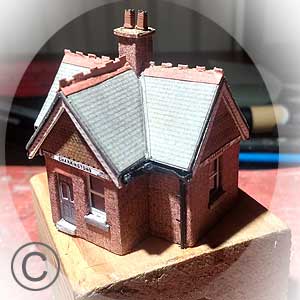

"The kit went together really nicely with no adjustments, I simply printed at 52% scaling and pasted onto cereal box card. I was able to build all the components including the gutters, not something I've attempted before. The only thing I felt the need to omit was the fancy upper window panes. The instructions were easy to follow, although the fancy ridge tiles were tricky to cut out. They really do make the model."

AH, Surrey, UK
