BR(S) double engine shed

BR(S) Engine Shed

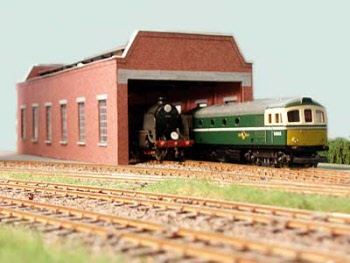

A two track shed based on Templecombe Lower Engine Shed (1951 to 1966) . The building is extant today, being used for industrial purposes. Similar style buildings were used at St. Leonards and Tonbridge.

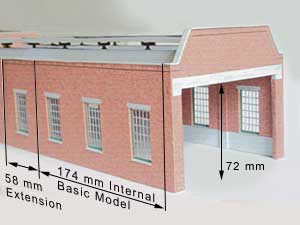

The model length is extensible ad infinitum. The basic structure will accommodate two small tank engines or diesel shunters side by side (e.g. 0-6-0) with buffer stops (int. length: 174 mm) . Add one extension (length: 58 mm) and larger tank engines can be housed. Three extensions are required for two large tender steam or diesel locomotives with buffer stops.

Footprint: 186 mm  x 133 mm (Basic model) . Each extension +58 mm long.

Build skill level: ADVANCED (See Welcome Page for definition) .

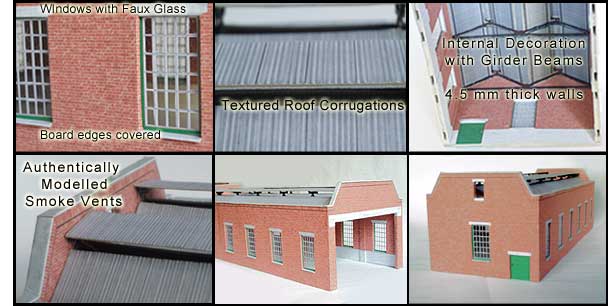

Rated ADVANCED because of intricate window frame cutting.

Material kit also available (see below) .

!

engine shed

047

BR(S) Engine Shed .pdf Card Kit

Contains all parts for basic model and extensions ad infinitum (by reprinting pages) .

Delivered as multiple .pdf data files.

When your payment has cleared at PayPal you will be shown the assembly instructions to download. The kit .pdf file will be delivered separately to your PayPal registered email address within 24 hours of cleared payment.

Shipping ONLY to UK, Canada, Australia, New Zealand customers.

Weight: kg

BR(S) Engine Shed Basic Materials Kit

Basic Model (L= 174 mm Internal)

DIY Print Kit Contents:

  • 8 x 750 micron (0.75 mm) A4 Grey Board
  • 14 x A4 Sticky Backed Paper for Ink Jet or Laser Printers
  • 1 x 99 mm x 210 mm x 250 micron (0.25 mm) Transparent Plastic
  • 30 mm x 0.7 mm diameter wire

You still need to print the papers yourself and source adhesives.

Shipping ONLY to UK Customers.

Fully Printed Kit Contents:

  • Materials as above
  • Printed using Epson Durabrite® Ultra Ink for colour fade resistance, smudge and water resistance. See full specification here

You still need to fix paper to board, cut out the parts and source adhesives yourself.

Note: .pdf Card Kit is NOT required for this option.

Shipping ONLY to UK Customers.

Weight: kg

BR(S) Engine Shed 58 mm Ext. Materials Kit

58 mm Extension Contents (Also needs Basic Materials Kit for a complete shed)

Note: Choose the 174 mm option below if 3 x 58 mm extensions are required as this reduces the number of visible wall joins.

DIY Print Kit Contents:

  • 2 x 750 micron (0.75 mm) A4 Grey Board
  • 4 x A4 Sticky Backed Paper for Ink Jet or Laser Printers
  • 1 x 99 mm x 210 mm x 250 micron (0.25 mm) Transparent Plastic

Shipping ONLY to UK Customers.

Fully Printed Kit Contents:

  • Materials as above
  • Printed using Epson Durabrite® Ultra Ink for colour fade resistance, smudge and water resistance. See full specification here

Note2: .pdf Card Kit is NOT required for this option.

Shipping ONLY to UK Customers.

Weight: kg

BR(S) Engine Shed 174 mm Ext. Materials Kit

174 mm Extension Contents (Also needs Basic Materials  Kit for a complete shed)

DIY Print Kit Contents:

  • 5 x 750 micron (0.75 mm) A4 Grey Board
  • 8 x A4 Sticky Backed Paper for Ink Jet or Laser Printers
  • 1 x 99 mm x 210 mm x 250 micron (0.25 mm) Transparent Plastic

Shipping ONLY to UK Customers.

Fully Printed Kit Contents:

  • Materials as above
  • Printed using Epson Durabrite® Ultra Ink for colour fade resistance, smudge and water resistance. See full specification here

Note: .pdf Card Kit is NOT required for this option.

Shipping ONLY to UK Customers.

The Prototype

on which this model is based. Templecombe Lower engine shed.
