L&SWR Type 4 SIgnal Box Model

L&SWR Type 4 Signal Box

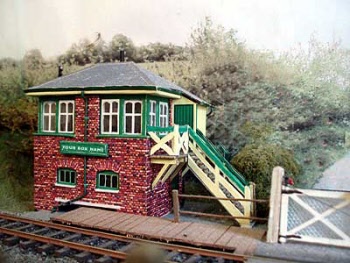

Introduced in late 1800s, with the last examples built by the Southern Railway up to 1928. Still in use during the BR period. Presented in Old English Brick Bond or Purbeck Stone and BR(S) building green, white and cream paintwork. This model is an amalgamation of Farncombe East and Hewish Gates boxes.

Footprint: 121 mm x 53 mm (125 x 61 incl. overhangs)

Build skill level: ADVANCED (See Welcome Page for definition) .

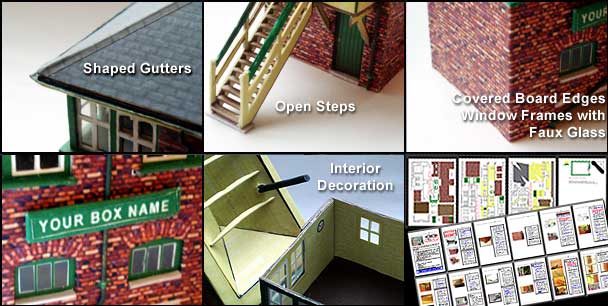

Rated ADVANCED because of intricate window frame cutting, steps and gutter assembly.

Expert build time: 9 hrs.

Material kit also available (see below) .

!

lswr type 4 signal box details

003

L&SWR Type 4 Signal Box .pdf Card Kit

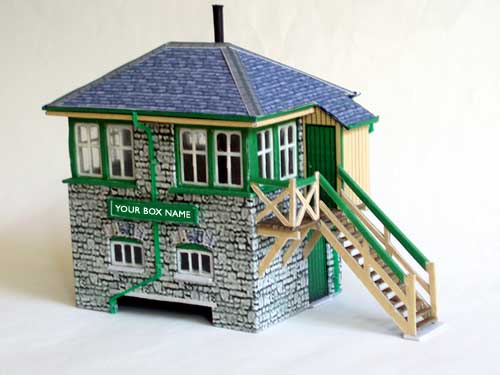

Stone version pictured. Click/touch image for larger view.

Delivered as multiple .pdf data files.

When your payment has cleared at PayPal you will be shown the assembly instructions to download. The kit .pdf file will be delivered separately to your PayPal registered email address within 24 hours of cleared payment.

Shipping ONLY to UK, Canada, Australia, New Zealand customers.

Weight: kg

L&SWR Type 4 SIgnal Box Material Kit

DIY Print Kit Contents:

  • 2 x 750 micron (0.75 mm) A4 Grey Board
  • 3 x A4 Sticky Backed Paper for Ink Jet or Laser Printers
  • 1 x A4 Non-sticky Paper for Ink Jet or Laser Printers
  • 1 x 99 mm x 210 mm x 250 micron (0.25 mm) Transparent Plastic
  • 250 mm x 1 mm wire

You still need to print the papers yourself and source adhesives.

Note: .pdf Card Kit is also required for this option.

Shipping ONLY to UK Customers.

Fully Printed Kit Contents:

  • Materials as above
  • Printed using Epson Durabrite® Ultra Ink for colour fade resistance, smudge and water resistance. See full specification here

You still need to fix paper to board, cut out the parts and source adhesives yourself.

Note: .pdf Card Kit is NOT required for this option.

Shipping ONLY to UK Customers.

Customer Comment About Type 4 Signal Box .pdf Card Kit

The Prototype

On which this model is based.

An amalgamation of Farncombe East and Hewish Gates Boxes.
