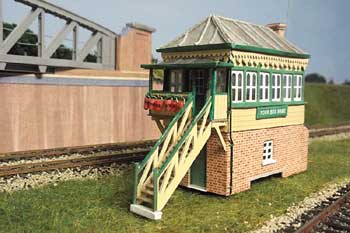

Junction Signal Box

An early Victorian Signal Box of unusual L&SWR design. Based on Milford Junction/Goods Signal Box, Salisbury (1869 -1969) . Another example with similar features was Southampton Tunnel Junction Signal Box. Presented in Flemish Brick & Stretcher Bonds. Finished in BR(S) building green and buff paintwork.

Footprint: 150 mm x 55 mm (including overhangs)

Build skill level: ADVANCED (See Welcome Page for definition) .

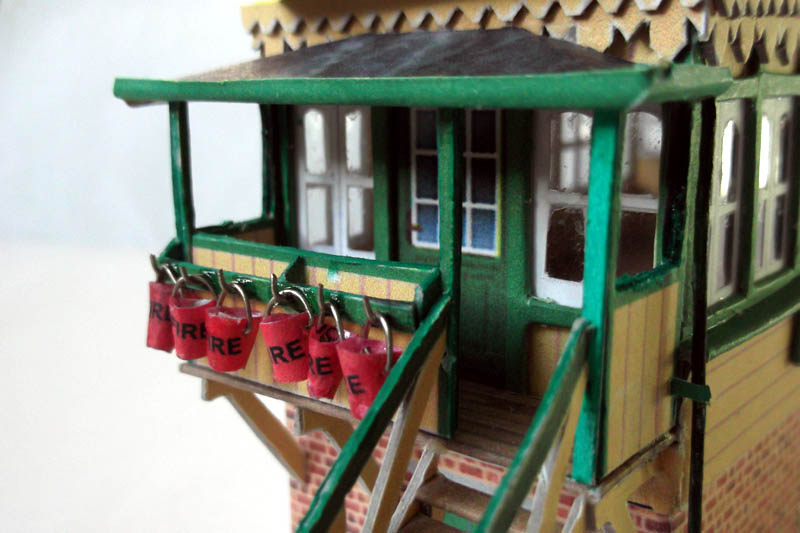

Rated ADVANCED because of intricate window frame cutting, steps, gutter and bucket assembly.

Material kit also available (see below) .

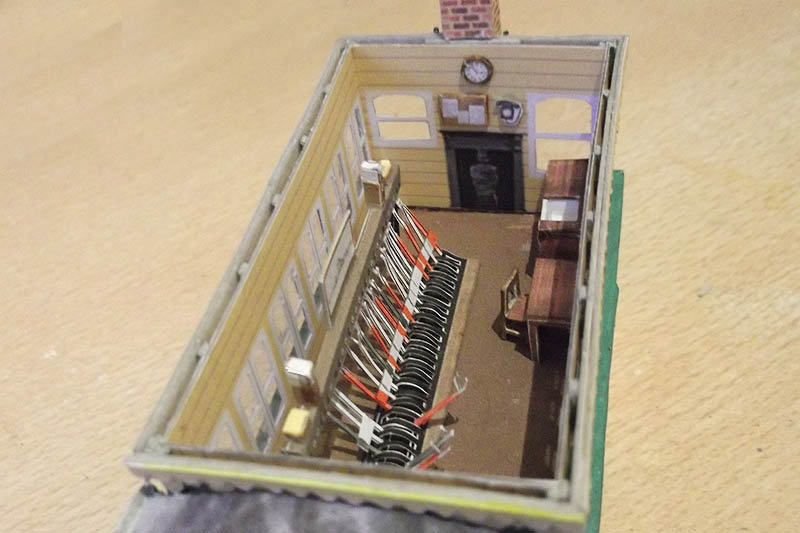

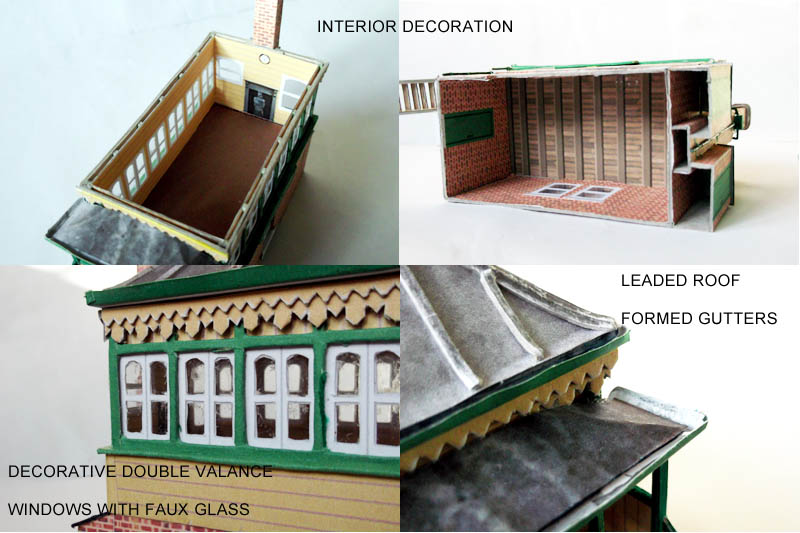

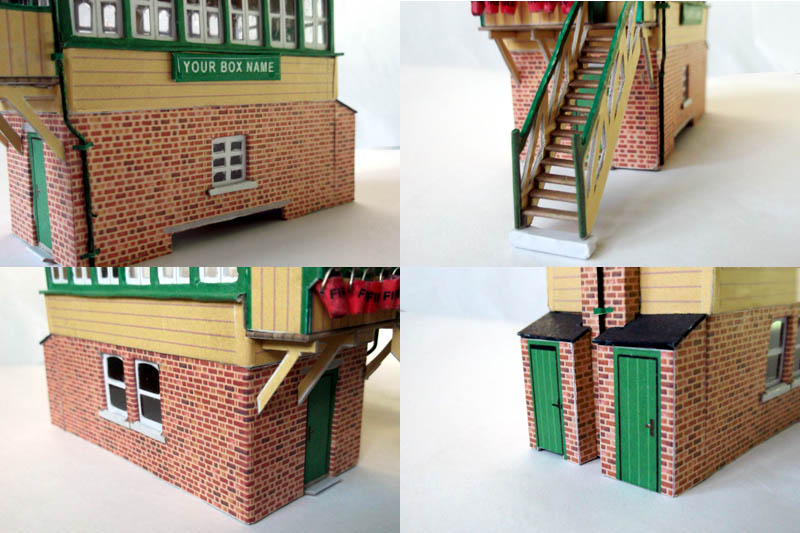

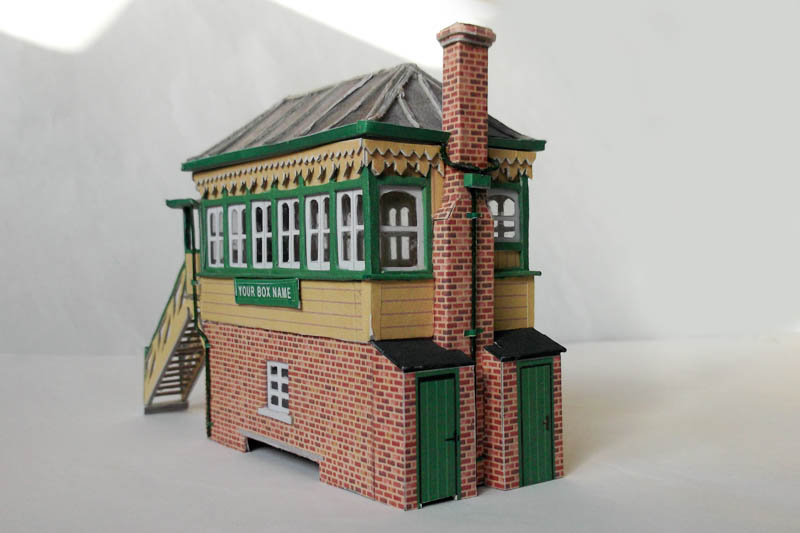

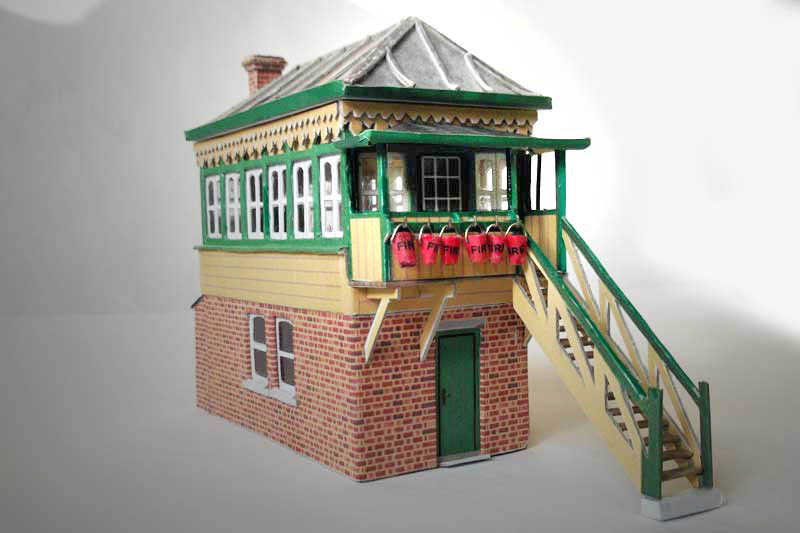

Click Image below for a Slide Show of Model Details (7 images)

!
055

Junction Signal Box .pdf Card Kit

Delivered as multiple .pdf data files.

When your payment has cleared at PayPal you will be shown the assembly instructions to download. The kit .pdf file will be delivered separately to your PayPal registered email address within 24 hours of cleared payment.

Shipping ONLY to UK, Canada, Australia, New Zealand customers.

Weight: kg

Junction Signal Box Materials Kit

DIY Print Kit Contents:

  • 3 x 750 micron (0.75 mm) A4 Grey Board
  • 5 x A4 Sticky Backed Paper for Ink Jet or Laser Printers
  • 1 x A4 Non-sticky Paper for Ink Jet or Laser Printers
  • 1 x 99 mm x 210 mm x 250 micron (0.25 mm) Transparent Plastic
  • 170 mm x 1 mm diameter wire
  • 150 mm x 0.5 mm diameter wire

You still need to print the model kit yourself and source adhesives.

Shipping ONLY to UK Customers.

Fully Printed Kit Contents:

  1. Materials as above
  2. Printed using Epson Durabrite® Ultra Ink for colour fade resistance, smudge and water resistance. See full specification here

You still need to cut out the parts yourself and source adhesives.

Note: .pdf Card Kit is NOT required for this option.

Shipping ONLY to UK Customers.

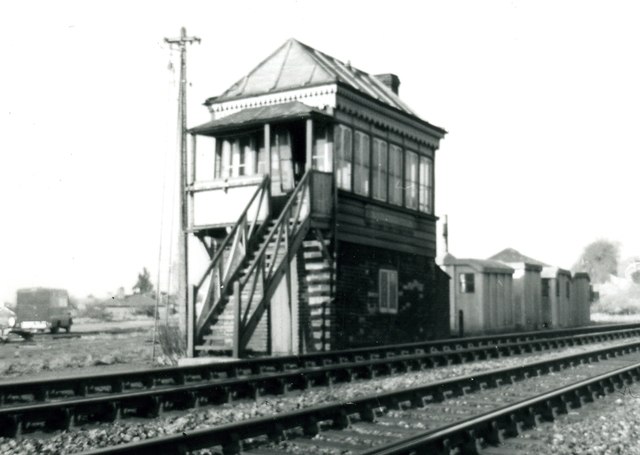

Photo © Dave Bevis (cc-by-sa/2.0)

The Prototype

On which this model is based: Milford Junction (Salisbury) aka Milford Goods.
