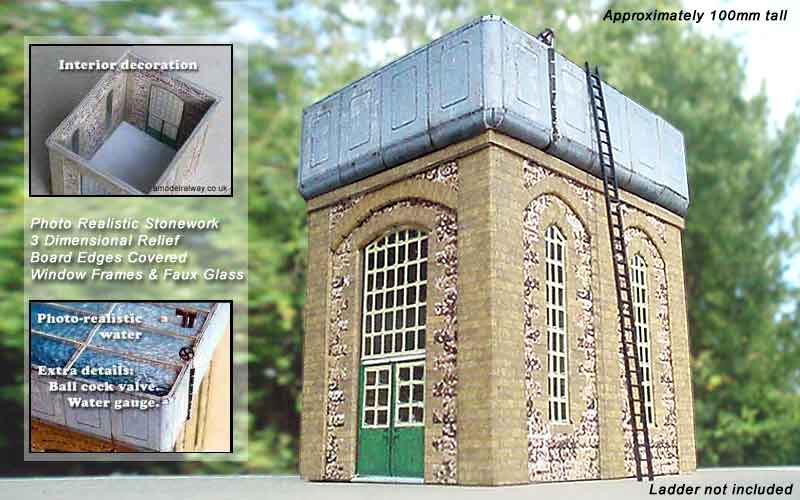

Large Water Tower

Based on the Crewkerne platform mounted water tower built in about 1859 and still extant today, albeit a pitched roof has replaced the tank. Similar styled tanks (some with a roof) on different tower building architecture existed at other stations along the Waterloo-Exeter railway line including Salisbury, Axminster and Honiton.

The brick style and colouration is simulated ham stone ashlar and BR(S) building green and cream paintwork. Designs are also supplied to make the ball cock valve and water level gauge. The ladder is not supplied with the card kit.

Build skill level: ADVANCED (See Welcome Page for definition) .
Rated ADVANCED because of intricate window frame cutting, and tank assembly.

Footprint: 84 mm x 66 mm (90 x 72 incl. overhangs)

Material kit also available (see below) .

!

large water tower

001

Large Water Tower .pdf Card Kit

Delivered as multiple .pdf data files.

When your payment has cleared at PayPal you will be shown the assembly instructions to download. The kit .pdf file will be delivered separately to your PayPal registered email address within 24 hours of cleared payment.

Shipping ONLY to UK, Canada, Australia, New Zealand customers.

Weight: kg

Large Water Tower Materials Kit

Note: Ladder not supplied.

DIY Print Kit Contents:

  • 3 x 750 micron (0.75 mm) A4 Grey Board
  • 6 x A4 Sticky Backed Paper for Ink Jet or Laser Printers
  • 1 x 99 mm x 210 mm x 250 micron (0.25 mm) Transparent Plastic
  • 260 mm x 0.2 mm diameter wire.

You still need to print the papers yourself and source adhesives.

Shipping ONLY to UK Customers.

Fully Printed Kit Contents:

  • Materials as above
  • Printed using Epson Durabrite® Ultra Ink for colour fade resistance, smudge and water resistance. See full specification here

You still need to fix paper to board, cut out the parts and source adhesives yourself.

Note: .pdf Card Kit is NOT required for this option.

Shipping ONLY to UK Customers.

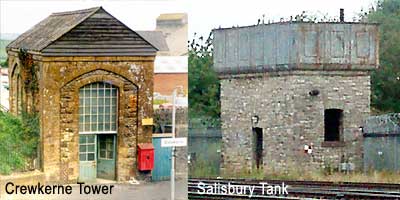

The Prototype

On which this model is based.

l&swr water tower
