SR type 13 signal box model

SR Type 13 Signal Box

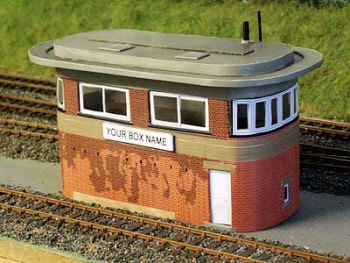

Introduced in 1939 the Type 13 remains in use at many locations throughout Southern England. This model is based on Deal in Kent. Deal contained 42 manual levers. It is an unusual variant as most type 13 boxes had rectangular ground floor extensions either side of the oval centre.

Modern prototype photographs show a two tone weathered brick, reproduced in the model for extra character.

Footprint: 127.5 mm x 59.5 mm (150.5 x 80.5 incl. overhangs)

Build skill level: ADVANCED (See Welcome Page for definition).
Rated ADVANCED because of intricate window frame cutting.

Material kit also available (see below) .

!

Tyoe 13 signal box details

008

SR Type 13 Signal Box .pdf Card Kit

Delivered as multiple .pdf data files.

When your payment has cleared at PayPal you will be shown the assembly instructions to download. The kit .pdf file will be delivered separately to your PayPal registered email address within 24 hours of cleared payment.

Shipping ONLY to UK, Canada, Australia, New Zealand customers.

Weight: kg

SR Type 13 Signal Box Material Kit

DIY Print Kit Contents:

  • 4 x 750 micron (0.75 mm) A4 Grey Board
  • 5 x A4 Sticky Backed Paper for Ink Jet or Laser Printers
  • 1 x A4 Non-sticky Paper for Ink Jet or Laser Printers
  • 1 x 198 mm x 210 mm x 250 micron (0.25 mm) Transparent Plastic
  • 1 x 170 mm x 1 mm diameter wire
  • 1 x 100 mm x 1.3 mm diameter wire

You still need to print the model kit yourself and source adhesives.

Shipping ONLY to UK Customers.

Fully Printed Kit Contents:

  1. Materials as above
  2. Printed using Epson Durabrite® Ultra Ink for colour fade resistance, smudge and water resistance. See full specification here

You still need to cut out the parts yourself and source adhesives.

Note: .pdf Card Kit is NOT required for this option.

Shipping ONLY to UK Customers.

The Prototype

On which this model is based.

Deal signal box

photo copyright: Gary Goldfinch, CC BY-SA 3.0
