LB&SCR Signal Box

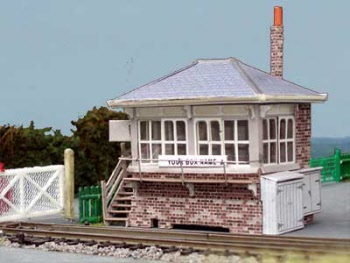

This box is based on Drayton, which contained 16 levers. Introduced in 1876 and demolished in 1986. It stood next to and controlled the level crossing.

A Saxby Farmer style used widely on the LB&SCR. Includes crossing mirror and equipment cabinets.

The livery is estimated from a photograph, believed to by 1960s BR(S) period. Also available in pre-grouping LB&SCR livery with transparent fanlights (See below) .

A low height building suitable for placing on a station platform or free standing alongside the railway track.

Footprint: 82 mm x 45.5 mm (82 x 55.5 including overhangs)

Build skill level: ADVANCED (See Welcome Page for definition) .

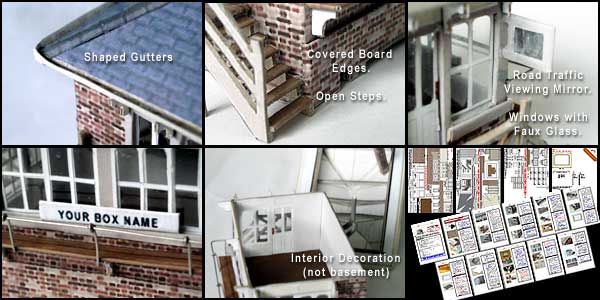

Rated ADVANCED because of intricate window frame cutting, steps and gutter assembly.

Expert build time: 9 hours.

Material kit also available (see below) .

!

lb&scr signal box details

007

LB&SCR Signal Box .pdf Card Kit

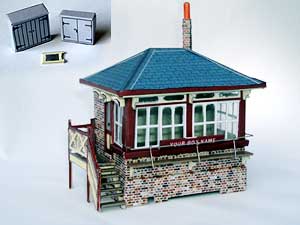

LB&SCR livery pictured. Click/touch image for larger view.

Delivered as multiple .pdf data files.

When your payment has cleared at PayPal you will be shown the assembly instructions to download. The kit .pdf file will be delivered separately to your PayPal registered email address within 24 hours of cleared payment.

Shipping ONLY to UK, Canada, Australia, New Zealand customers.

Weight: kg

LB&SCR Signal Box Materials Kit

DIY Print Kit Contents:

  • 2 x 750 micron (0.75 mm) A4 Grey Board
  • 3 x A4 Sticky Backed Paper for Ink Jet or Laser Printers
  • 1 x A4 Non-sticky Paper for Ink Jet or Laser Printers
  • 1 x 99 mm x 210 mm x 250 micron (0.25 mm) Transparent Plastic
  • 150 mm x 0.6 mm Diameter wire.
  • 60 mm x 1 mm diameter wire.
  • 70 mm x 1.3 mm diameter wire

You still need to print the papers yourself and source adhesives.

Shipping ONLY to UK Customers.

Fully Printed Kit Contents:

  • Materials as above
  • Printed using Epson Durabrite® Ultra Ink for colour fade resistance, smudge and water resistance. See full specification here

You still need to fix paper to board, cut out the parts and source adhesives yourself.

Note: .pdf Card Kit is NOT required for this option.

Shipping ONLY to UK Customers.

Customer Comment About LB&SCR Signal Box .pdf Card Kit

The Prototype

On which this model is based.

Drayton, near Chichester, West Sussex on the south coast line.
